MOPA Fiber Laser Marking Machine
MOPA Fiber Laser Marking Machine
400*400mm Splicing Marking Fiber Laser Marking Machine

Brief Introduction:

Model: UG-100FM
100W MOPA JPT fiber laser
Splicing marking 400*400mm
400*400mm stroke module
Rotary disc

INQUIRY NOW

Applications

Electronic and communications products, integrated circuit chip, computer parts and electrical appliance,all kinds of precision component,  hardware tool, instrument and meter, aerospace and astronautics, jewelry, horologe, gift, office supply, trademark signs, sanitary ware, kitchen ware, plastic product, metal ornament, fastener, eyeglasses frame, , sanitary ware fittings, tableware, food, beverage and alcohol & tobacco,etc all kinds of area graph and characters’s, marking, mass production, marking clear and beautiful, never disappear.

Features

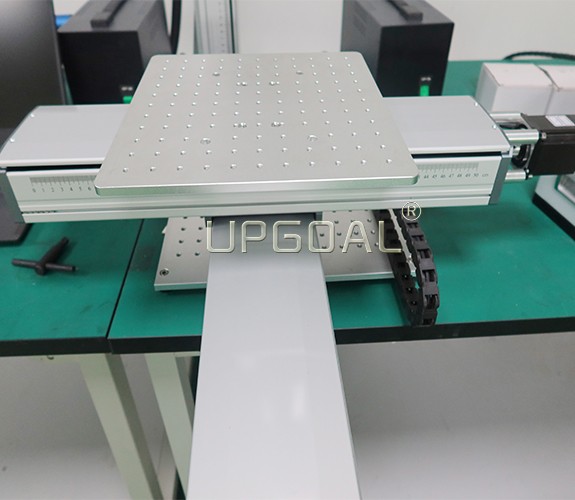

1. Large 400*400mm marking area, XY axis with strok module 500*500mm, adopt splicing mobile marking method to meet the demand for large working area.

2. With 100W JPT MOPA Fiber laser source, the laser beam is fine and thin to ensure best marking effect. Together with the stable slide, the fiber laser marker is especailly good for large size seamless splicing image marking.

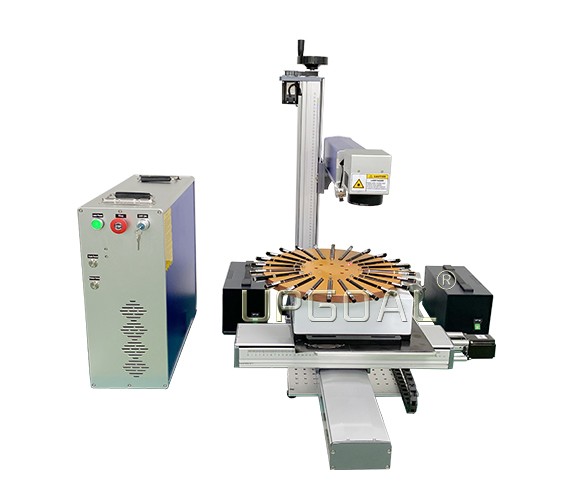

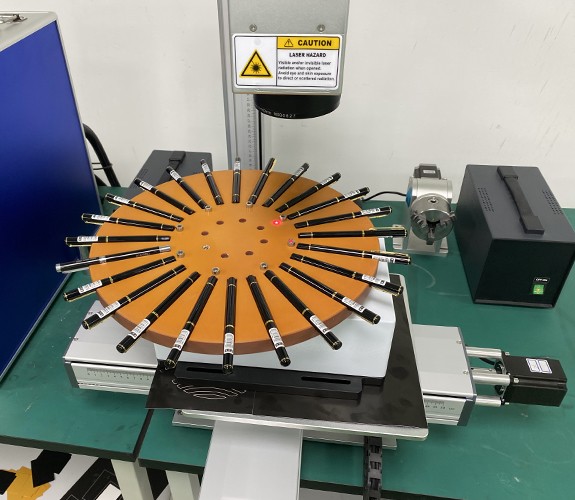

3. With 360degree turning rotary disc table, each time can for 24pcs pen marking, much improving marking efficiency.

4. Original EzCad controller, Can for bar code, graph, characters, OR code, ect marking, supporting PLT, DXF, BMP such format, can useSHC, TTF word stock; System can auto encoding, auto marking serial number, batch number, and date, ect.

5. With famousSINO-GALVO SG2206 series galvanometer  &  high speed scanning length, fiber laser marking machine has good facula modemore thin single line, suitable for hyperfine processing, high system integration, less malfunction, are the real suitable for industrial processing area

6. With auto lifting Z-axis, do auto focusing, convenient for different thickness materials marking.

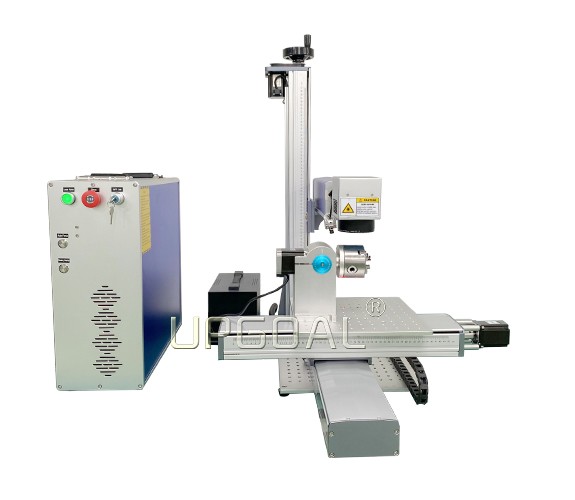

7.With chuck type rotary axis for all kinds of cylinder marking.

8. Equipped with smoke purifier( Conyson brand, 100W), with 3 layers purification, net filtration: 0.3um99.99%, the universal slub tube can be bent and adjusted at 360 degrees at will, with good supporting effect, high temperature resistance, good airtightness, and resistance to aging. High temperature resistant silicone cover, air volume regulating valve, large smoking area, good effect. Smart chip, block alarm.

9. Deep Marking: The marking deepth of the laser part marking machines can be up to 0.5mm (depending on the material), which fullfills the most deep marking demands.

10. Higher Accuracy: The fiber laser part marking machines can reach up to 0.001mm precision.

11. Long life time: fiber laser lifetime can reach 100,000 hours, the seamless splicing laser marking machine can be used for 8-10 years.

12. Low Power Consumption: low cost, only 0.5kw/hour, no consumables, use Integrated Air Cooling, free of Maintenance.

13. No need to adjust the laser path.

14. Easy for installation: We will supply the installation training video and manual.


1060 400.jpg

Laser type

MOPA fiber laser

Maximum output laser power

100W(JPT brand)

Wave length of laser

1064nm

Marking scope

400*400mm

Laser sources

Fiber module

Laser Head

High speed scanning head

The minimum focus facula diameter

20μm

Minimal character

0.01mm

Fofucsing

Auto focisng

Control system

Original EzCad controller, support splicing marking

Marking depth

0.01-5mm( depends on different materials)

Marking line width

0.01-0.1mm

Marking speed

≤7000mm/s

Laser repetition frequency

20kHz~80kHz

Galvanometer

High speed digital galvanometer SINO-GALVO)

Filed lens

Scanning lens( F-THETA)

Cooling method

Air Cooling

Power supply

AC 220V/110V, 50/60Hz, single phase

Support format

PLT, BMP, DXF, JPG, TIF, AI etc

Process Material

All kinds of metal and part of non-metal materials( opque acrylic/plastic)

Certificate

CE/FDA


made in China 描述222.jpg
